How to Re-send images from the Nidek AFC-330 fundus camera

The Nidek AFC-330 holds images on the device for a period of 10 days after photos are taken.  In case a network issue (or something else) prevents the user from exporting on the first try, here's how to access and re-send those images.

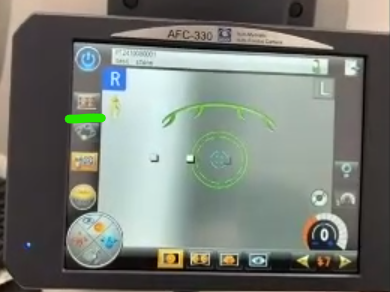

1. On the AFC-330 screen, press the "patient" icon.  (The one that looks like a lil' dude.)

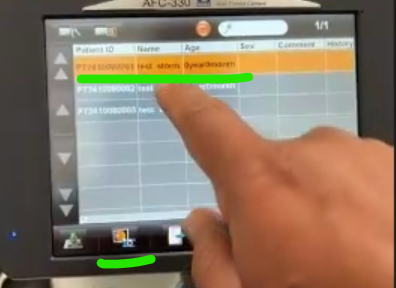

2. A list appears.  Tap the test you wish to re-export from the list to highlight it (top of screen), and then press the Photography Mode icon (bottom of screen).

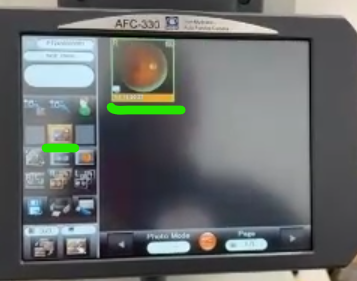

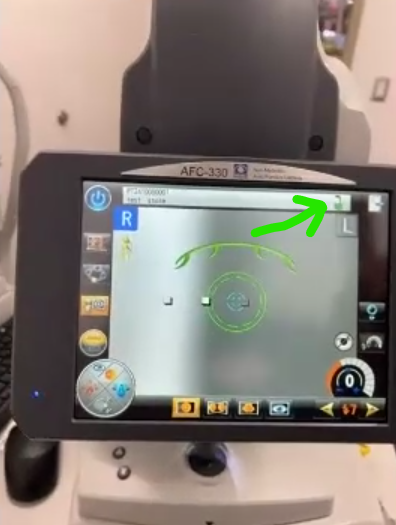

3. The photography screen appears. Tap the Photos icon.

4. A photo list appears.  Tap to select each photo you wish to export, followed by the export button.  Voila!

If you have any questions you can email ITSupport@for2020now.com

Article Updated on 10/29/2024
