Issue: RT-6100 phoropter is not functioning, or data from pretest devices is not transmitting to MarcoConnect

1. Navigate to the MEM-200 admin console

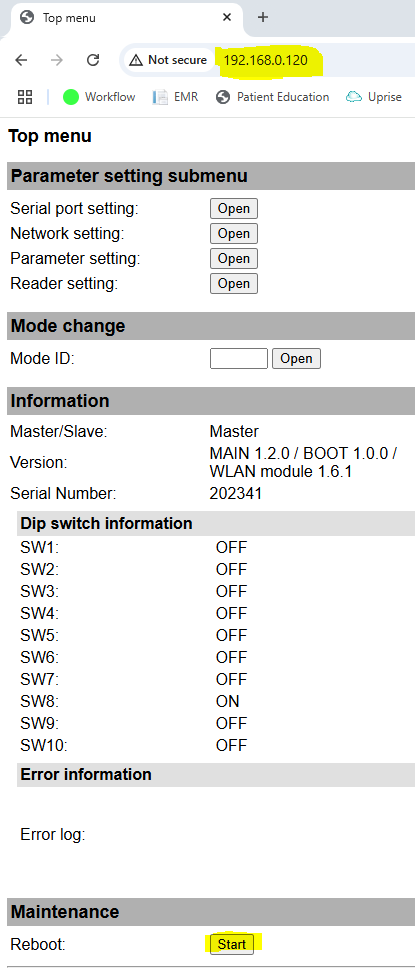

The black box next to the gray relay box plays an important role in communication between the phoropter unit, the controller, and the PC.  It can be rebooted through a web browser.  Type this in the address bar in Google Chrome: 192.168.0.120

2. Reboot

The device can be rebooted by pressing the Start button next to the Reboot column at the bottom of the page.

3. Close tab

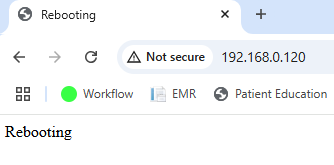

The page will display "Rebooting", and after ~10 seconds the phoropter will beep.  You can close the tab anytime.

4. Resume normal operation

Close and reopen Eyemax/Eyelogic and try controlling the phoropter.  Try sending data from the control box.

⭐ Note: If you are still having issues, contact IT Support on Workflow.

If you have any questions you can email ITSupport@for2020now.com

Article Updated on 05/28/2025
